Advantages of Silicon Carbide (SiC) Power Devices

1. Overview

Silicon Carbide (SiC) belongs to wide bandgap semiconductor materials. Compared with traditional silicon power devices (Si MOSFET, IGBT), SiC power devices have inherent physical advantages, making them the preferred solution for high-voltage, high-frequency, high-efficiency power conversion systems.

2. Core Advantages of SiC Power Devices

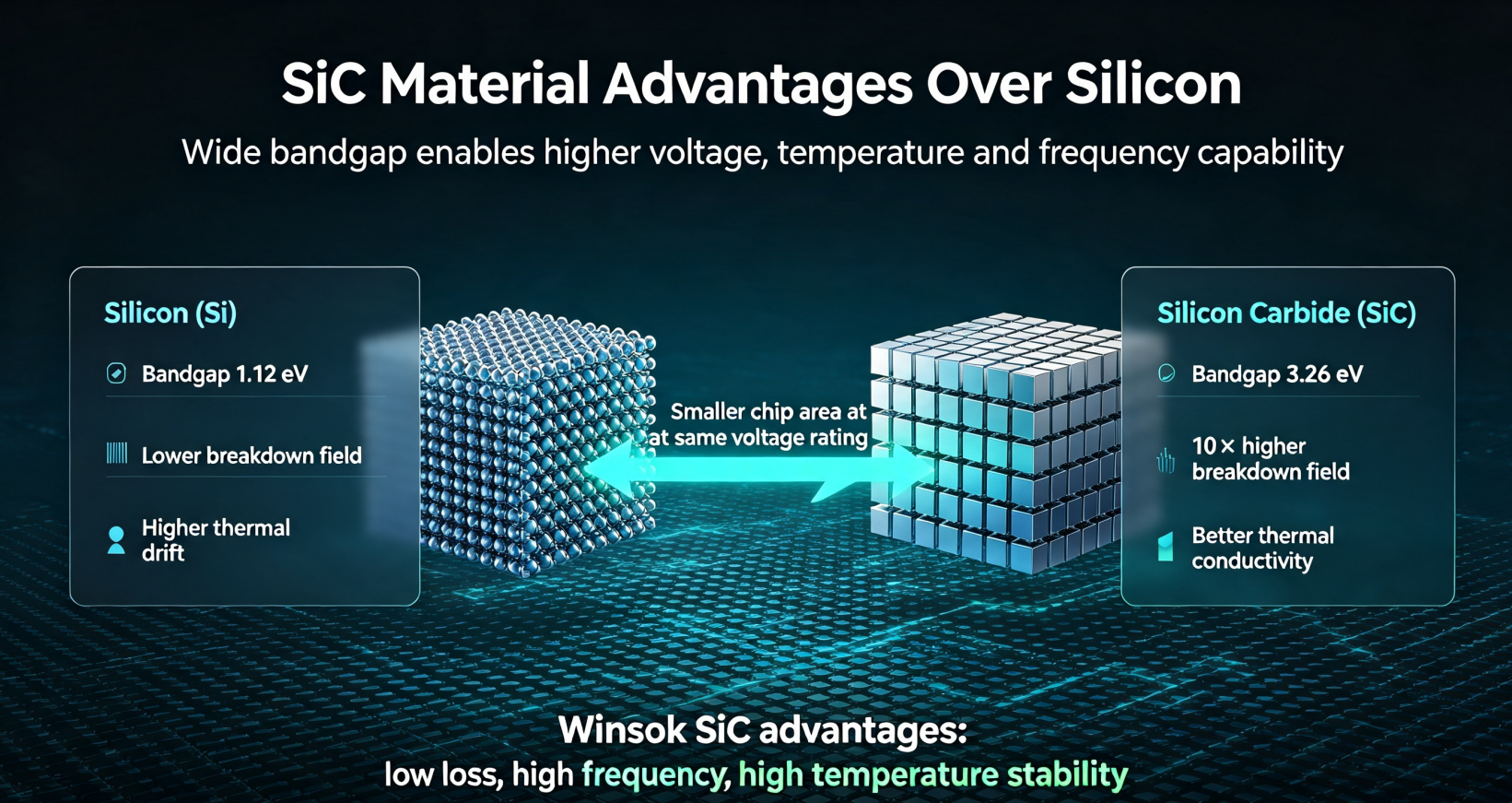

2.1 Higher breakdown electric field strength

SiC has approximately 10 times higher breakdown field than silicon. Under the same withstand voltage specification:

SiC chip thickness can be greatly reduced;
Lower on-resistance and smaller chip area;
Devices can achieve higher voltage ratings (650V, 1200V, 1700V, 3300V).

2.2 Ultra-low switching loss, support high-frequency operation

SiC MOSFET features tiny parasitic capacitance and negligible reverse recovery current.

It can work stably at switching frequencies from hundreds of kHz to MHz;
High frequency allows designers to reduce the volume of inductors, transformers and capacitors;
Help equipment realize miniaturization and lightweight design.

2.3 Excellent high-temperature performance

The bandgap of SiC is much wider than silicon.

Maximum sustainable junction temperature can reach 175°C ~ 200°C;
Less severe rise of on-resistance at high temperature;
Reduce heat sink volume and lower cooling system cost.

2.4 Low conduction loss under high voltage specifications

For high-voltage power applications above 600V: Si IGBT has obvious conduction voltage drop, while SiC MOSFET maintains low on-resistance. System energy efficiency increases significantly, effectively cutting power consumption during long-time operation.

2.5 Suppress EMI noise

No large reverse recovery current inside SiC devices. Switching transient current spikes are smaller than silicon power devices, which reduces electromagnetic interference and lowers the difficulty of EMC design.

2.6 Higher energy efficiency & lower operational cost

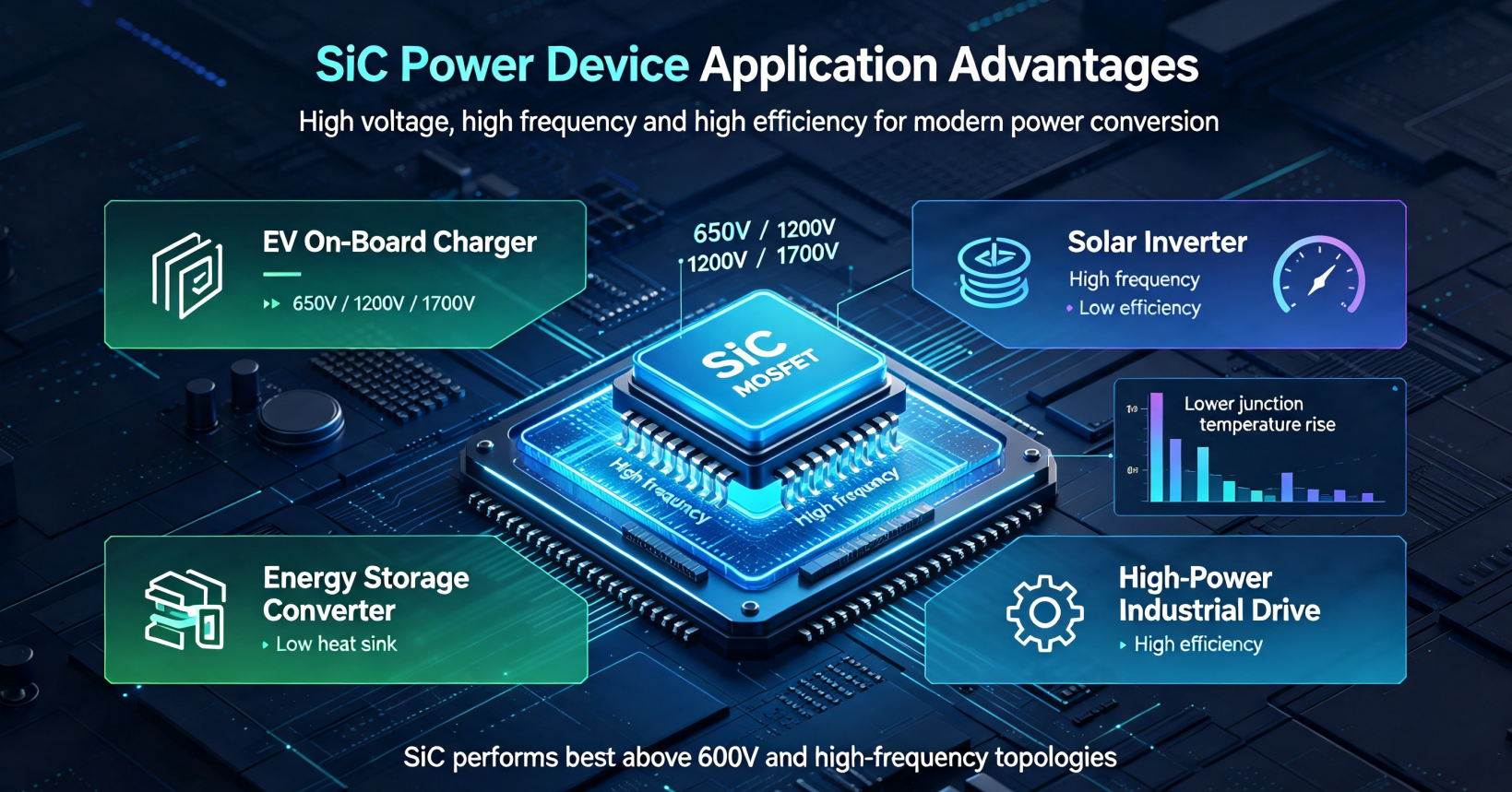

Less switching loss and conduction loss mean less heat generation. For solar inverters, energy storage converters, vehicle chargers: Higher efficiency reduces electricity loss throughout the equipment service life.

3. Practical Engineering Reminder

SiC has outstanding strengths in high-voltage & high-frequency scenarios. For low-voltage projects below 200V such as BLDC motor drivers and BMS, silicon MOSFET (Winsok Si MOS) still possesses better cost performance. Blind replacement with SiC will raise BOM cost without obvious efficiency improvement.
